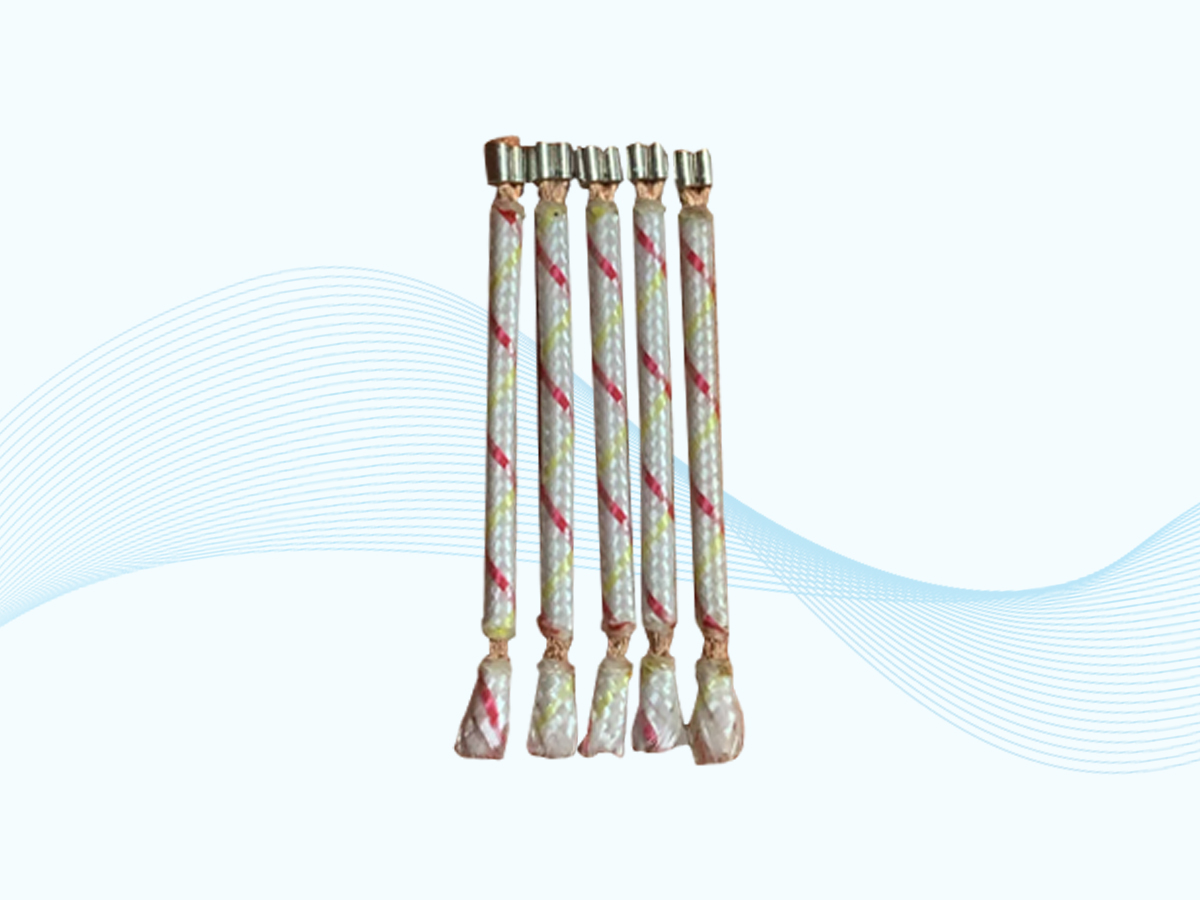

1. Processing of ultra-short lead wires for refrigerator compressor wiring harnesses.
2. Incorporate a short-wire transfer mechanism utilising dedicated short-wire cutting blades to achieve crimping of terminals with a minimum wire length of 35mm.
3. Automatically performs soldering, fixed-length cutting, front-end stripping, and front-end terminal crimping.
4. Configure detection methods including poor stripping detection, terminal pressure monitoring, wire feeder anomaly detection, and pneumatic pressure monitoring.
5. Utilising premium brand components: Siemens PLCs, Kunlun Tongtai touchscreens, INVT PN servo drives, Festo solenoid valve assemblies, etc., to ensure stable machine operation and minimise maintenance requirements.
Function | Parameter |
Name | Fully Automated Single-Wire Ultra-Short Crimping Machine |
Model | KB-680GS-CHD |
Voltage | 220V50HZ |
Power | 3.0KW |
External Dimensions | 1600*700*1800MM |
Weight | 150KG |
Efficiency | 1200–1500 PS/hour (calculated based on 100 mm) |
Barometric pressure | 6~8KG |
Applicable wire diameter | 0.5~2.5Square |
Tangent length | 35~300MM |
Cutting precision | ±0.1mm |
